7-step guide to set up Hadoop (single-node Cluster) on Ubuntu Virtual Machine

Apache Hadoop is a framework for distributed computing, based on Hadoop Distributed File System (HDFS); it offers a solution for large-scale data containment and processing by incorporating a system to distribute the data keeping, its retrieval and processing to inexpensive hardware.
Fancy as it seems, deploying and configuring Hadoop, unfortunately isn't a trivial process. It requires big effort, time and expertise.
In this post, we will try to demonstrate how to setup a single-node cluster of Hadoop on a Ubuntu Linux virtual machine, purely for experimental purposes. If done correctly, this might be helpful for large-scale deployments. Let's get started.

Step 1: Getting Ubuntu VM ready

First step is to install Oracle VirtualBox on your machine and create an Ubuntu (13.04) Virtual machine.
After successful creation of Virtual Machine (VM), launch and update your OS on VM using the following combination of commands on Terminal (Ctrl+T):
# Update your OS using aptitude commands
$ sudo apt-get update
$ sudo apt-get upgrade


Step 2: Installing JDK

Hadoop is designed on Java and hence requires Java Development Kit (JDK) to run. Although Ubuntu comes with built-in Open JDK, but it is recommended that you use Oracle’s JDK. Here is a bunch of commands, which will do that:
$ sudo add-apt-repository ppa:webupd8team/java
$ sudo apt-get update
$ sudo apt-get install oracle-java7-installer
OR (if the above doesn’t work)
$ sudo update-java-alternatives -s java-7-oracle

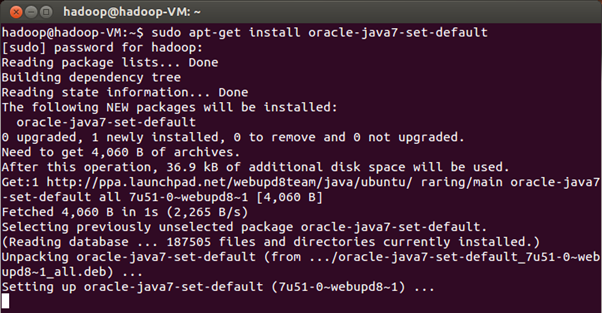

$ sudo apt-get install oracle-java7-set-default
$ java –version

If the installation was successful, the last command should print the version of JDK you have installed.

Step 3: Setting up SSH

We need to configure Secure Shell (SSH), which is required by Hadoop Cluster to manage its nodes. In order to do so, install Open SSH Server first:
$ sudo apt-get install openssh-server

Now you need to create a public key for SSH; execute the following command:
# Generate key using RSA algorithm and empty password
$ ssh-keygen -t rsa -P ""

The encryption algorithm used here is RSA and the empty space after –P switch indicates that we are creating a password less public key (learn more here), since this setup is for experimental purpose. On production environment, you should always enter a password. Next, enable SSH access to your local machine with the following command:
$ cat /home/hadoop/.ssh/id_rsa.pub >> /home/hadoop/.ssh/authorized_keys
Test the ssh service by ssh’ing localhost (your own VM):
$ ssh localhost

Your Ubuntu Linux is now configured and ready for Hadoop installation.

Step 4: Installing Hadoop

Download Hadoop from recommended mirror. You can either download/extract a zipped file (usually a tar file) to any directory you wish to install in (for example /usr/local/hadoop), or download a debian installer for Ubuntu and skip some configuration steps. Here we will use zipped file, version 1.2.1-1.
When the file is downloaded, extract it to a folder in home directory, like Documents. Now open terminal (Ctrl+Alt+T) and copy the extracted files to /usr/local/ directory:
$ cd Documents/
# Copy Hadoop to destination directory
$ sudo cp –R hadoop_1.2.1/ /usr/local/
$ cd /usr/local/
$ ls
# Rename the directory for ease
$ sudo mv hadoop_1.2.1 hadoop

You also need to change the ownership of Hadoop’s directory to the user “hadoop” recursively. Do so by executing:
$ cd /usr/local/
# Recursively assign ownership to [user]:[group]
$ sudo chown –R hadoop:hadoop hadoop

Step 5: Setting up Environment Variables

Next, we need to set up environment variables. On Ubuntu command (Alt+F2) type “gksu nautilus” to launch file manager with root privileges.
Locate .bashrc file in /home/hadoop/ (or whatever the username is). Open this file and add the following lines at the end:
# Set Environment variables
export JAVA_HOME=/usr/lib/jvm/java-7-oracle
export HADOOP_HOME=/usr/local/hadoop
export PATH=$PATH:$HADOOP_HOME/bin
Save and exit the file.

Don’t just close the Explorer Window; you need to change JAVA_HOME to “/usr/lib/jvm/java-7-oracle” in another file – /usr/local/hadoop/conf/hadoop-env.sh. In this file, you can define some parameters to Hadoop’s daemon process, like heap size, or storing log files, etc.

We will now configure Hadoop file system (HDFS), where Hadoop will store data. First, create a directory for temporary files and point Hadoop towards it in its configuration to store temporary files. Go on and create a directory in /home/hadoop/hadoop/tmp using mkdir command in terminal (do not use sudo, or you’ll have to explicitly define permissions)

Step 6: Adding Properties

We need to define some essential properties in difference configuration files. First, we edit the /usr/local/hadoop/conf/core-site.xml file (if you are using terminal, you can edit using $ sudo nano /usr/local/hadoop/conf/core-site.xml). We need to add two properties, one to define the directory where HDFS will create its temporary files and the other to define its address and port, the file system will map to. Add the following properties at the end of this xml file just before the closing tag </configuration>:
<property>
<name>hadoop.tmp.dir</name>
<value>/home/hadoop/hadoop/tmp</value>
</property>
<property>
<name>fs.default.name</name>
<value>hdfs://localhost:54310</value>
</property>

In the same directory, edit mapred-site.xml. Add property “mapred.job.tracker”:
<property>
<name>mapred.job.tracker</name>
<value>localhost:54311</value>
</property>

Similarly, we will edit hdfs-site.xml file and set the file replication, i.e. the number of copies of a file that the file system will store. We only need single copy for now, but creating replicas is strongly recommended for production systems:
<property>
<name>dfs.replication</name>
<value>1</value>
</property>

Step 7: Starting Hadoop Services

We will now format the HDFS file system. This is required in order to remove all data in the cluster for initial installation:
$ hadoop namenode –format

Finally, start the Hadoop cluster on a single node. This will start some services (Namenode, Datanode, Jobtracker and Tasktracker):
$ start-all.sh


That’s it. You have configured Hadoop on a single-node cluster. The real thing is what you do with it – soon to come.
